Onkyo TX-8222 s DO

Prodám stereo zesilovač Onkyo TX-8222. Zachovalý stav. Ovladač je novější, ale kompatibilní.

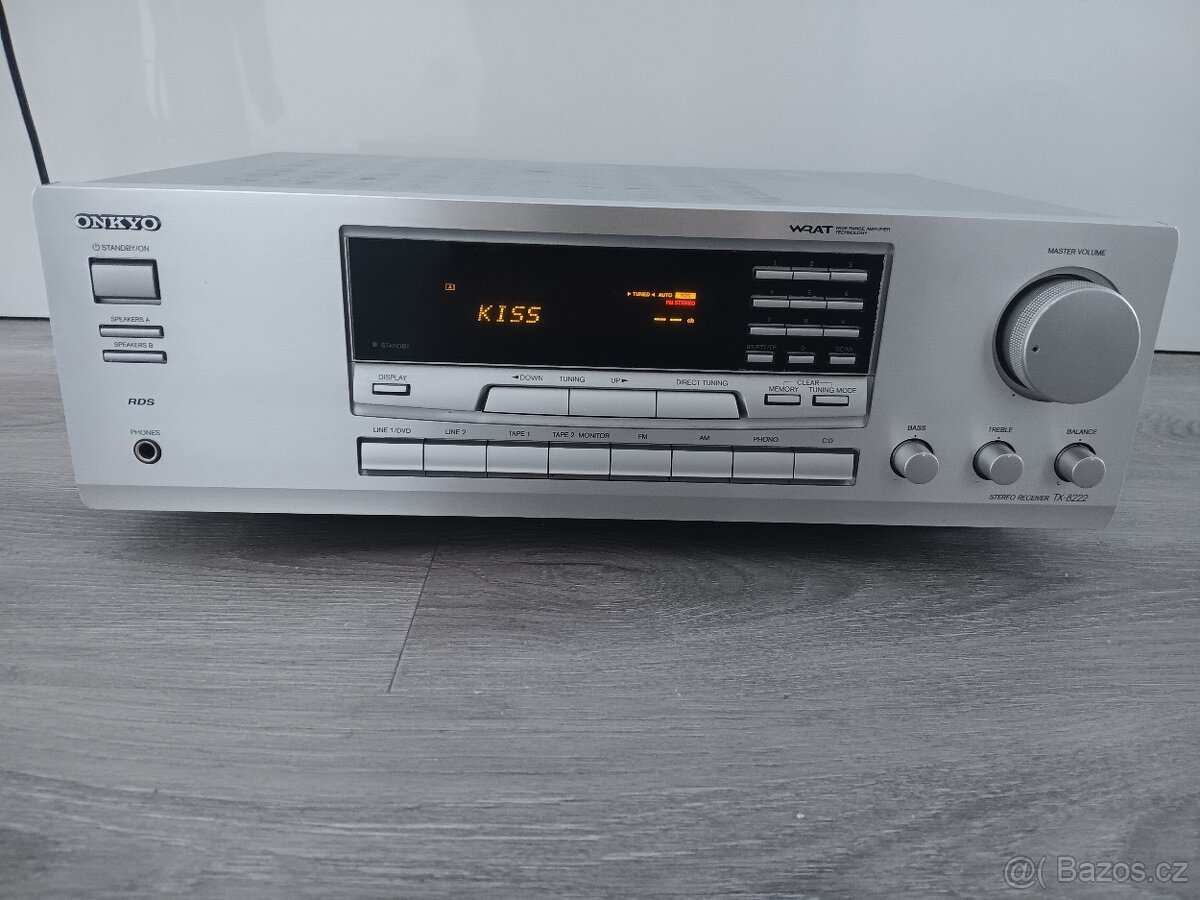

Onkyo Stereo Receiver TX-8222



General:

Manufacturer: Onkyo
Model: TX-8222
Years of manufacture: 2006/07
Manufactured in:
Color: silver, black
Remote control: yes
Power consumption: 180 W (0.3 W standby)
Dimensions: 435 x 150 x 332 mm (WxHxD)
Weight: 7,5 kg
Original price approx:

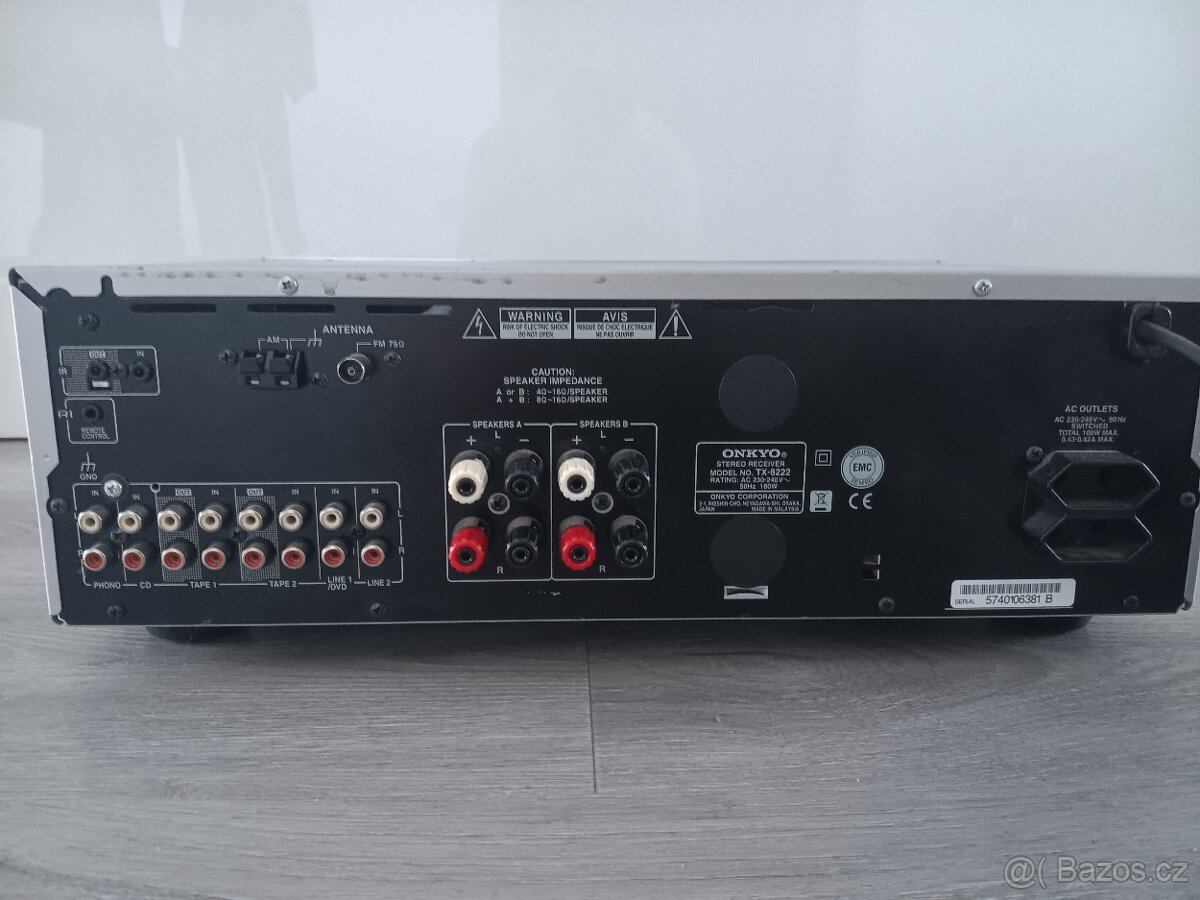

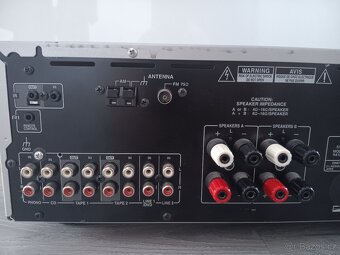

Connections:

Number of inputs:
1x Phono MM: 2.5 mV / 50 kOhm.
5x Line In (CD, Tape 1/2, Line 1/DVD, Line 2): 150 mV / 50 kOhm IR In

Antenna FM (75 Ohm), AM
Number of outputs:
2x Line Out (Tape 1/2): 150 mV / 2.2 kOhm
IR Out

Headphones (6.3 mm jack, front)
2 pairs of loudspeakers
Other
RI Remote Control


Technical Data:

Amplifier:

Continuous power (at distortion).
8 Ohm:
4 Ohm: 2 x 70 Watt (1 kHz)
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.08 % (at rated power)
Attenuation factor: 60 (8 Ohm, 1 kHz)
Frequency response: 10 - 100,000 Hz (+1/ -3 dB, CD)
Signal-to-noise ratio: (IHF-A)
Phono: 80 dB High level: 100 dB

Stereo channel separation:
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz

Loudness: no
High Filter: no
Low Filter (Subsonic): no
Mute: no
Direct/Line-Straight:

Tuner

Reception: FM, MW
Frequencies:
FM: 87.5 - 108 MHz
MW: 522 - 1,611 kHz

Frequency response: 30 - 15,000 Hz ( ± 1 dB, FM)
Input sensitivity:
Distortion factor:
FM: 0.3 % / 0.5 % (mono/stereo).
MW: 0.7 Signal to Noise Ratio: (IHF-A) FM: 73 / 67 dB (mono/stereo)

MW: 40 dB
Channel separation:
Selectivity:
Co-wave selection:
Spurious wave selection:
IF attenuation:
IF attenuation:
AM suppression:
Output level:
RDS: yes
Station memory: 40

Special Features

Display dimmer (3 levels)
Compatible with RI Dock for iPod
