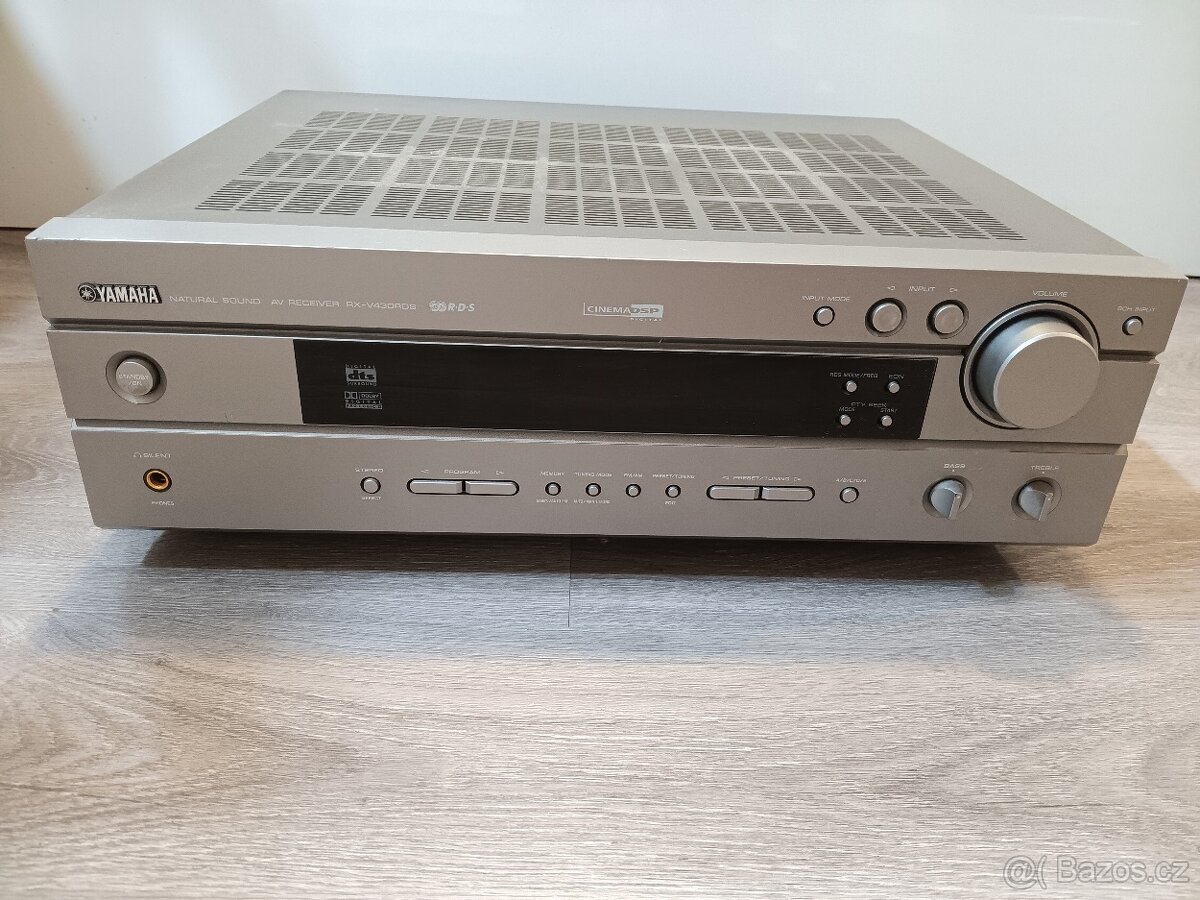

Yamaha RX-V430RDS 5.1

Prodám Yamaha RX-V430RDS 5.1 Originální DO.

General

Manufacturer: Yamaha
Model: RX-V 430 RDS
Type: RDS A/V receiver
Years of manufacture: 2002 - 2003
Made in: Japan
Color: Black, Titanium

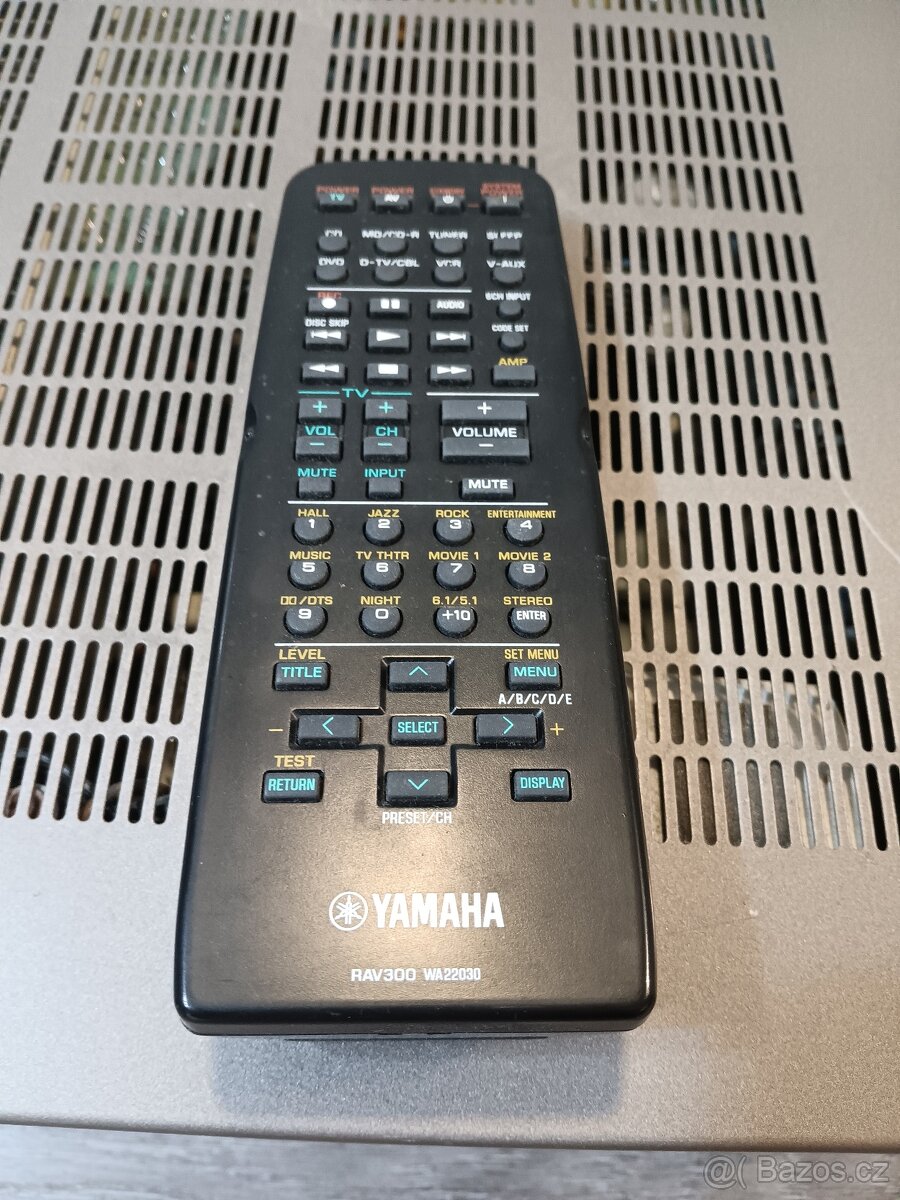

Remote control: yes, pre-programmed
Power consumption: 230 W, in standby mode max. 0.9 W
Dimensions (WxHxD): 435 x 151 x 380 mm
Weight: 10 kg

Technical data

Audio/Video Channels: 5.1

TV standard: PAL, NTSC
A/D converter: n/a
D/A converter: 24Bit - 96 KHz
Output power (at distortion).
Stereo:
Front: 2x 65 W (20 Hz to 20 kHz, 0.06% distortion, 8 ohms).
Center: 65 W (20 Hz to 20 kHz, 0.06% distortion, 8 ohms).
Rear: 2x 65 W (20 Hz to 20 kHz, 0.06% distortion, 8 Ohm)

Dynamic power IHF 8/6/4/2 Ohm 90/110/130/150 W
Total harmonic distortion: 0.06% (20 Hz to 20 kHz, 40 W)
Attenuation factor: 80 (20 Hz ... 20 kHz, 8 Ohm)
Frequency response: CD at Main L/R 10 Hz ... 100 kHz, - 3 dB
Signal-to-noise ratio: 100 dB(IHF-A network) CD (250 mV, shorted) at Main L/R, effect off

Channel separation (1 kHz/10 kHz):
CD (terminated with 5.1 KOhm) to Main L/R, effect off.
Tone control (Main L/R):
Bass: +/- 10 dB / 50 Hz
Treble: +/- 10 dB / 20 kHz

Mute: Yes
Bass Management: Crossover frequency 80Hz fixed
DSP Programs: Yes

Sound Formats

Dolby Digital
Dolby Digital EX
DTS
DTS-ES Matrix 6.1
Dolby Pro Logic
Dolby Pro Logic II
Virtual Cinema DSP
Silent Cinema

Tuner

Reception: FM, MW
Frequencies:
FM: 87.5 to 108.0 MHz
MW: 531 to 1611 kHz

Frequency response: 20 Hz to 15 kHz, +0.5, -2 dB
Distortion factor: Mono/Stereo 0.2%/0.3% at 1 kHz
Signal-to-noise ratio IHF: mono/stereo 76 dB/70 dB

Channel separation: 45 dB at 1 kHz
Selectivity (400kHz): 70 dB
RDS: Yes
Station memory: 40 (30 FM / 10 AM)

Special Features

96-kHz/24-bit D/A converter
