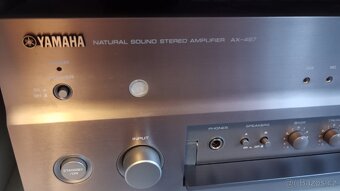

Zesilovač Yamaha AX 497

Zesilovač mám stále zapojený, je v super stavu, nic nechrastí, nic nešustí. Hlasitost nikdy nebyla přes 50% - máme sousedy.

Model: AX-497
Type: analog
Remote control: yes
Power consumption: 220 watts (490 watts max.)
Dimensions: 435 mm × 151 mm × 390 mm (W × H × D)
Weight: 9.1 kg

Connections

Number of inputs:
Phono MM 2,5 mV / 47 kOhm
CD, Tuner, AUX, 2 × Tape 150 mV / 47 kOhm
Number of outputs:
2 × Loudspeaker
2 × Rec-Out 195 mV / 1.6 kOhm
Headphones 0.3 V / 680 Ohm
Technical Data

Continuous power (at distortion)
8 ohms: 2 × 85 watts at 0.019
4 Ohm: 2 × 120 Watt (DIN)
Dynamic power
8 Ohm: 2 × 130 Watt
4 Ohm: 2 × 185 Watt
Total harmonic distortion: 0.009 %
Attenuation factor: 240
Frequency response: 10-50,000 Hz
Signal-to-noise ratio: 110 dB
Stereo channel separation: 65 dB
Tone control:
Bass: ±10 dB at 20 Hz
Treble: ±10 dB at 20,000 Hz

Loudness: adjustable
High Filter: no
Low Filter (Subsonic): no
Mute: no
Direct/Line-Straight: CD-Direct and Pure-Direct

Special Features

Record Selector

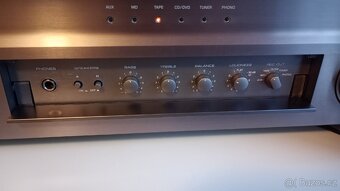

Secondary controls under cover flap
