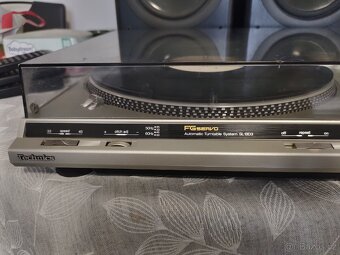

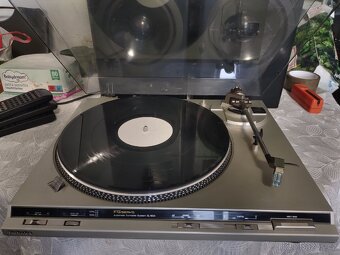

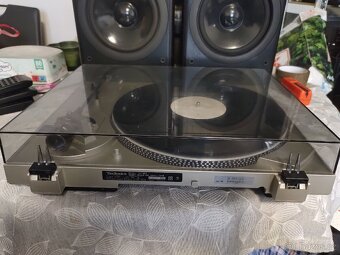

Gramofon Technics SL-BD3

Prodám plně funkční gramofon ve stříbrné barvě.
Více info potelefonu.
Mohu poslat nebo dovézt.

Years of manufacture: 1987 - 1994
Made in: Japan
Colour: Black
Power consumption: 3 W
Dimensions: 430 x 100 x 375 mm (WxHxD)
Weight: 3.8 kg
Original price approx.: 399 DM

Connections

Outputs: 2 x Cinch plug red / white (RCA)

Technical data

Drive: Belt drive
Motor: DC motor
Speed: 33 1/3, 45 rpm
Variation in synchronism: 0.045% WRMS (JIS C5521), ±0.06% peak (IEC 98A rated)
Rumble noise ratio: -70 dB (IEC 98A rated)
Turntable: aluminium injection moulding, 312 mm
Operating mode: fully automatic
Tonearm: statically balanced, straight tonearm
Cartridge system: plug-in type
Effective arm length: 230 mm
overhang: 15 mm
track misalignment angle
2°32' at the lead-in groove of a 30cm record
0°32' at the outlet groove of a 30cm plate
Effective mass: 13.5 g (incl. pick-up system)
Needle pressure adjustment range: 1.25 g
Permissible cartridge weight: 6g

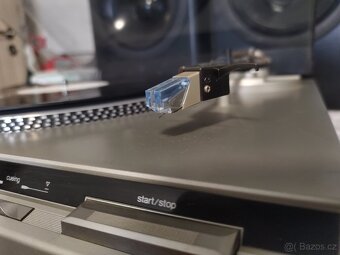

Cartridge

Technics P30 for Technics sl-bd3 and Technics P34 for Technics sl-bd3d.
Type: Moving magnet stero cartridge
Magnetic circuit: Full lamella core
Frequency response: 10 Hz to 35 kHz
Output voltage: 2.5 mV at 1kHz 5cm /s.
Channel separation: 22 dB at 1 kHz
Channel deviation: Within 2 dB at 1 kHz
Needle: EPS-34CS or Atn3472p for Technics sl-bd3d and Eps-30CS for Technics sl-bd3
