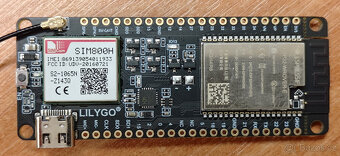

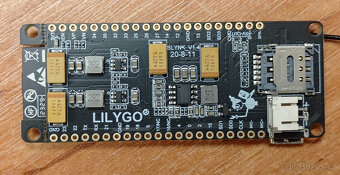

LilyGO TTGO T-Call ESP32 SIM800H WiFi GPRS Modul + Antena

Pri platbe predem na ucet :

90,- na vydejni misto Zasilkovny
75,- do Balikovny


Zasilkovna na dobirku :

130,- na vydejni misto


Working voltage 2.7V-3.6V
Working current About 70mA
Sleep current About 300uA
SIM card Only supports Nano SIM card
Working temperature range -40℃ ~ +85℃
Size&Weight 78.83mm*28.92mm*8.06mm(11.77g)
Power Supply Specifications
Power Supply USB 5V/1A
Charging current 500mA
Battery 3.7V lithium battery
JST Connector 2Pin 2mm
USB Type-C

Wi-Fi
Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m

Bluetooth
Protocol meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency

Software specification
Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA（Through network/host to download and write firmware）
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOSapp
