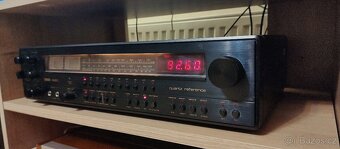

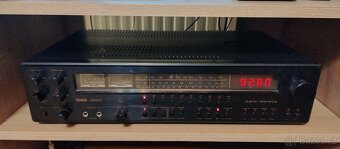

Saba 9260 Ultra Hifi professional quartz reference

Saba Ultra Hifi professional quartz reference Receiver 9260
Type: Receiver
Years of manufacture: 1980 - 1982
Made in: Germany
Color: Anthracite/Silvermetallic or Anthracite/Matt Black
Remote control: -
Power consumption: min. 60 W, 350 Watt (max)
Dimensions: 540 x 135 x 335 mm (WxHxD)
Weight: 14.2 kg
Original price approx.: 1'500 DM

Amplifier
Continuous power (at distortion)
8 Ohm: 2 x 57 W sinus power

4 Ohm: 2 x 80 W sinus power
Dynamic power
8 Ohm: 2 x 78 music power
4 Ohm: 2 x 120 W music power
Total harmonic distortion: 0.03% (at rated power, 1kHz)
Attenuation factor: (40...12500) 30 for 4Ohm and 60 for 8Ohm
Frequency response:
10 - 80,000 Hz (-3 dB, 1%).
15 - 50,000 Hz (±1.5 dB)
Signal-to-noise ratio: 81 dB at rated power
Stereo channel separation: 60 dB
Tone control:
Bass: ±15 dB (60 Hz).
Treble: ±15 dB (15 kHz)
Loudness: +13/6 dB (60 Hz/15 kHz)
High Filter: -3dB /8000Hz / 12dB/Oct
Low Filter (Subsonic): -3dB / 60 Hz / 12dB/Okt
Mute: muting for FM reception
Direct/Line-Straight: -

Tuner
Reception: VHF/MW
Frequencies:
FM: 87.5 - 108 MHz
MW: 520 - 1630 kHz
Frequency response: 50 - 16,000 Hz
Input sensitivity:
FM, Mono: 0.55 µV for 26dB S/N ratio.
Stereo FM: 8 µV for 46 dB noise floor
MW: 4 µV
Stereo threshold: 5 µV
Muting threshold: 3 µV
Distortion factor: FM mono and FM stereo: 0.2%
Signal-to-noise ratio: FM mono: 68 dB, stereo: 64dB
Channel separation: 40 dB
selectivity: FM 80 dB, AM: 54 dB
Co-wave selection: 1.0 dB at 1 mV
Spurious wave selection:
IF attenuation:
IF attenuation:
AM suppression:
Output level:
RDS: no
Station memory: 10
