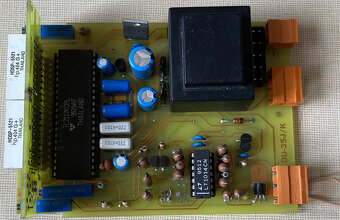

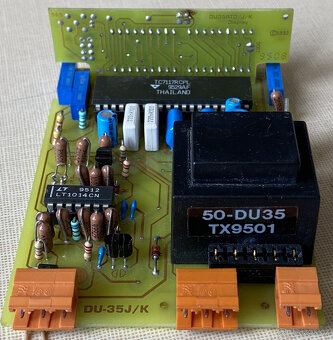

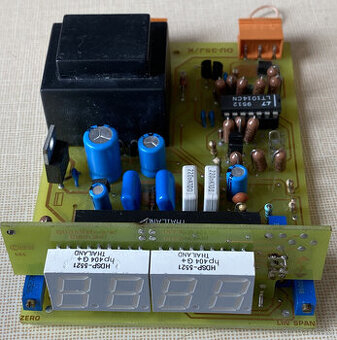

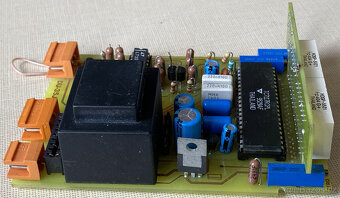

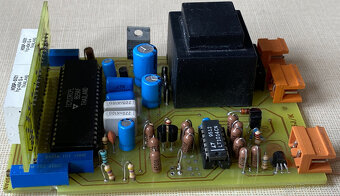

Měřící přístroj 3,5 místný s TP7117RCPL

Nabízím měřící přístroj 3,5 místný s TP7117RCPL.

Full Scale Ranges: ..........Three header selectable ranges of 2V, 20V,

and 200V DC full scale

Input Impedance:.............1MΩ (minimum)

A/D Converter: .................12 Bit Dual Slope

Accuracy: .........................±(0.05% of reading plus 3 digits)

Temperature Coefficient: 100ppm/˚C (Typical)

Warm Up Time:.................One minute to specified accuracy

Conversion Rate: .............3 readings per second

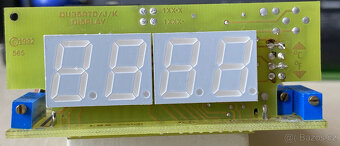

Display:.............................0.56" hi efficiency Red or optional Green LEDs.

Display Hold and Display Test are provided.

Polarity: ............................Bipolar. Assumed positive,

displays negative

Power Supply (std): .........120/240V AC, 50/60Hz. approx 2.5W.

(Optn) VO-DC/ISO .............Isolated Switcher. 9 to 36V DC/12 to 24V AC

(Optn) VO-24V ................Isolated Transformer 24V AC ±10%

(Optn) VO-5V DC............Non-isolated 5V DC ±10%

Operating Temperature: ..–10 to 50 °C

Storage Temperature:......–20 to 70 °C

Relative Humidity: ...........95% (non-condensing)

Case Dimensions: ...........1/8 DIN, Bezel: 96x48mm (3.78”x1.89”)

Depth behind bezel 117 mm (4.61”) plus

11.8mm (0.47”) for Right-angled Connector

or 20mm (0.79”) for Straight-through
