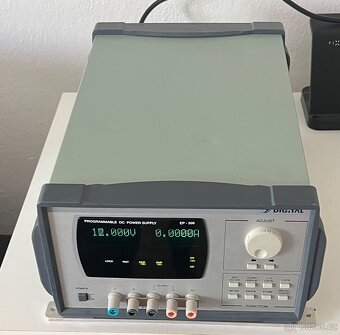

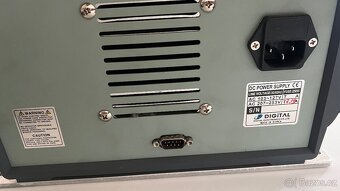

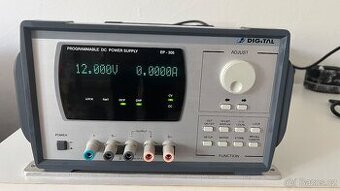

Programovatelný laboratorní zdroj Digital EP-305

Prodám málo používaný laboratorní zdroj značky Digital EP-305. Technické informace naleznete níže. V případě dalších informaci mě neváhejte kontaktovat.

Output Voltage 0~30V/ Output Current 0~5A/ Program Accuracy Voltage 0.05%+20mV Current 0.2%+10mA Readback Accuracy Voltage 0.05%+10mV Current 0.2%+5mA Ripple & Noise Voltage 20Hz ~ 20MHz Less than 20.0mV p-p Current Less than 2.0mA rms Load Regulation Voltage Connected Remote Sense Terminal Less than 0.01% + 2mV Current Connected Remote Sense Terminal Less than 0.01% + 0.5m A Line Regulation Voltage 220V ± 10% Less than 0.01% + 2mV Current Less than 0.01% + 0.5mA Program Resolution Voltage 0.25mV Current 0.05mA Display Resolution Voltage 1mV Current 100㎂ O.V.P/O.C.P Accuracy Voltage 0.5% + 0.5V Current 0,.5% + 0.5A Program Max Range Voltage 0~31.5V Current 0~5.15A Output Stability Voltage 0.02% + 1mV Current 0.1% + 3mA Temperature Config.(1℃) Voltage 30 min Warming-up 0.01% + 1mV Current 0.1% + 3mA Remote Sensing Range Response Time Max 1V per 2 Way / After setting output V.A Local Mode : < 2.6 sec, Remote Mode : < 0.3 sec Output Terminal Insulation Output~Sensing Non Insulation Conductor : ± 60VDC Terminal INsulation Conductor : ±240VDC Insulation Resistance Chassis ~ Output : More than 100m ㏁ Chassis ~ Output : More than 100m ㏁ Power Source AC 200v, 230V 50/60Hz(Option: AC100V, 110V) Dimension(WxDxH),mm 235 x 370 x 135 Weight(Kg) 12Kg
