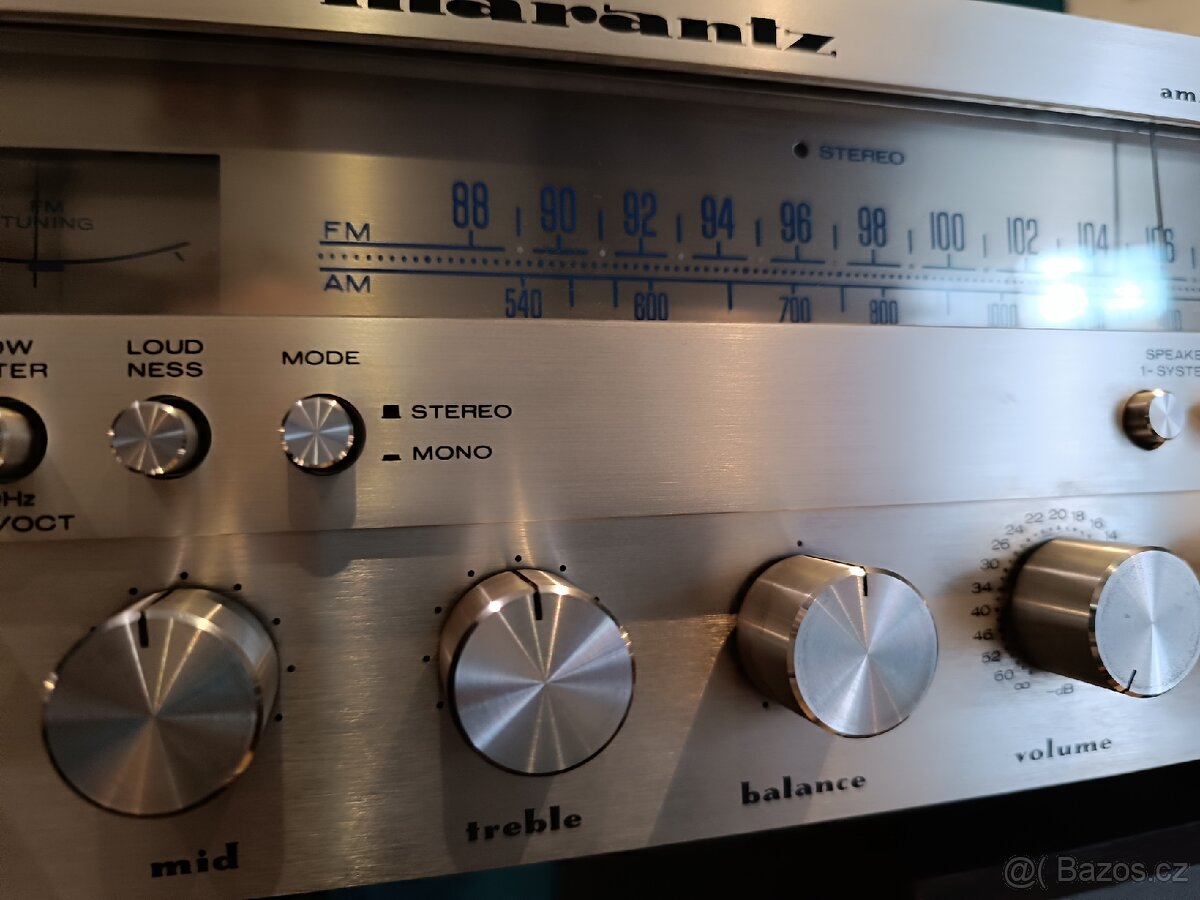

Marantz zesilovač

Zesilovač/receiver Marantz v perfektním stavu. Legendární značka, legendární zvuk. Všechno funguje. Přístroj servisován.

parametry:
Number of Transistors
Semiconductors present.
Semiconductors
Main principle
Superheterodyne (common)
Wave bands
Broadcast (BC) and FM or UHF.
Details
Hi-Fi equipment
Power type and voltage
Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker
- This model requires external speaker(s).
Power out
60 W (undistorted)
Material
Metal case
from Radiomuseum.org
Model: AM/FM Stereo Receiver 1530 - Marantz Sound United LLC;
Shape
Book-shelf unit.
Dimensions (WHD)
440 x 137 x 358 mm / 17.3 x 5.4 x 14.1 inch
Notes
HiFi Stereo Receiver 1530

Duration - Output power of the 1530 measured according to (US) FTC (20-20,000Hz):

2 x 30 watts into 8 Ω resp
2 x 33 watts into 4 Ω
and measured with the following values according to DIN (1,000 Hz):

2 x 48 watts into 8 Ω resp
2 x 56 watts into 4 Ω

Net weight (2.2 lb = 1 kg)
11 kg / 24 lb 3.7 oz (24.229 lb)
Source of data
- - Manufacturers Literature
Mentioned in
Marantz Katalog 1978 (deutsch), Serviceanleitung Seite 26 (europ. Vers.)
